Saturday, November 15, 2008

Tuesday, November 11, 2008

Dabbling Tabling

Leg Joinery

With the top well underway, my energy is diverted to the legs.
The choice of joinery in this case is through tennons, and wedges formed from our secondary wood - rosewood.

As there are curves involved there are a few tricks. My tools of choice for this task is my trusty makita drill with a 1/2" bit, and to keep me on the straight and narrow, a stanley no. 59 dowel jig.

Before getting started, you need mark out the mortise. So that I don't blow out the bottom I've actually removed 1/8-1/4" material on the underside - remember this is curved side will be visible (to thier feet anyway.)

This a twist or brad point bit aim to overlap your holes but drill every second one before the overlap. This technique allows symetrical forces on the bit and helps reduce the change of the bit skipping into the hole next to it.

I then clean the joint with hand tools. Bench chisels remove the bulk of the material but chopping, then paring. Then finally I use a rasp to smooth the inside careful not to roll or damage the edges.

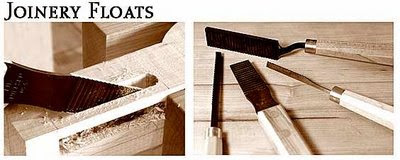

(A side note. I was at the Lie-Nielson site the other day and saw these joinery floats. I know little about them, but assume they work very similar to a rasp, and could be very handy at times. Let me know if you have any experience with them.)

Sunday, November 9, 2008

Rosewood Turnings...

To be honest I'm not really much of a turner. Occasionally however the need arises.

Today, I made about 80cm of 8mm dowel.

The timber is from an old, half burnt, rosewood weatherboard.

I think these will be a very nice touch. More to come.

Tuesday, November 4, 2008

Saturday, November 1, 2008

Wood shopping...

Boutique Timbers

Once you graduate from Bunnings bought Radiata Pine you’ll want to explore the world of Australian Hardwoods and Softwoods. I’m fortunate enough to have a good local timber merchant. Mal Ward of Boutique Timbers has always offered me good variety (I've purchased from him Tas. Blackwood, Tas. Mrytle, Huon Pine, Silky Oak, Northern Silverash, River Redgum, Jarrah...) all at a good price. His small mill trades mostlyin slabs rather than boards, and all the wood I’ve purchased has been air dried on his property. He travels to a variety of woodshows around the country. If you come across him mention my name.

My purchase

After discussing the project, quantity of , and my budget - Mal showed me a few timbers and we eventually deciding on Coastal Blackbutt. Blackbutt is a very heavy and dense wood akin to Red River Gum (my last large project.) Why Blackbutt? Although a relatively plain wood, I chose it because it is grown locally (you see it everywhere around here) and I liked that. I also wanted something strong enough to handle the curves I want to make. One thing I wasn’t prepared for was – although my tools don’t seem to mind it, my back does, this is a really heavy wood.

4 boards, 3m long, all wedge shape 350mm-400mm, and 50mm thick – total $300.

Rough marking, making sure all the parts will fit.

The rough tabletop.

Benches, stretches and everything else.
